MODULAR
FLOATS.

DIVERSE MULTI-HULL FLOATS DESIGNED FOR RECREATIONAL OR TECHNICAL PURPOSES.

THESE VERSATILE FLOATS SERVE AS THE FOUNDATION FOR CONSTRUCTING SAILING AND MOTOR CATAMARANS, RAFTS, RECREATIONAL PLATFORMS, FLOATING HOUSES, BARGES, OR TECHNICAL PLATFORMS.

ABOUT

HE MODULAR FLOAT, CONSTRUCTED FROM POLYETHYLENE, FEATURES A SEAMLESS, CLOSED STRUCTURE WITHOUT WELDED OR GLUED JOINTS, ENSURING COMPLETE WATERTIGHTNESS. IT COMES IN DIAMETERS OF Ø 730MM AND Ø 900MM, EQUIPPED WITH SOCKETS AND HOLES FOR 10MM SCREWS, FACILITATING THE INSTALLATION OF THE DECK'S SUPPORTING STRUCTURE. THE FLOAT INCLUDES A KEEL WITH HOLES, OPTIONALLY SECURED WITH A COVER. THESE FLOATS CAN BE COMBINED IN TWO- OR MULTI-HULL SYSTEMS, ALLOWING THE CONSTRUCTION OF BOATS OR FLOATING TECHNICAL PLATFORMS, ESPECIALLY WHEN PAIRED WITH A BOW SEGMENT. OUR FLOATS ARE AVAILABLE EMPTY OR FILLED WITH STYROFOAM, WITH A MINIMUM WALL THICKNESS OF 7MM. WE OFFER CUSTOM CONFIGURATIONS FOR MULTI-HULL FLOAT SYSTEMS UPON REQUEST.

 MODULAR FLOATS Ø 730

BOW FLOAT Ø 730

TOTAL DISPOSALITY: 430 KG

USABLE BUOYMENT: 215 KG*

HEIGHT: 752 MM

LENGTH: 1500MM

WIDTH: 730 MM

WEIGHT: 30KG

 MODULAR FLOATS
 MODULAR FLOATS

STERN FLOAT Ø 730

TOTAL DISPOSALITY: 640 KG

USABLE BUOYMENT: 320 KG*

HEIGHT: 752MM

LENGTH: 1775 MM

WIDTH: 730 MM

WEIGHT: 37 KG

 MODULAR FLOATS
 MODULAR FLOATS

MIDDLE FLOAT Ø 730

TOTAL DISPOSALITY: 600 KG

USABLE BUOYMENT: 300 KG*

HEIGHT: 752 MM

LENGTH: 1500MM

WIDTH: 730 MM

WEIGHT: 34 KG

 MODULAR FLOATS
 MODULAR FLOATS

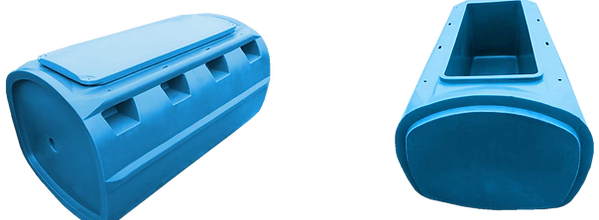

MIDDLE FLOAT W/ BOX Ø 730

​FLAP SECURED WITH A GASKET, CLOSED WITH FOUR Ø8 SCREWS

TOTAL DISPOSALITY: 600 KG

USABLE BUOYMENT: 300 KG*

HEIGHT: 752 MM

LENGTH: 1500MM

WIDTH: 730 MM

WEIGHT: 51 KG

BOX CAPACITY: 200 L

 MODULAR FLOATS
 MODULAR FLOATS

* FLOAT SUBMERGED APPROX. 400MM

MODULAR FLOATS Ø 900

BOW FLOAT Ø 900

​TOTAL DISPOSALITY: 760 KG

USABLE BUOYMENT: 380 KG*

HEIGHT: 852MM

LENGTH: 1500MM

WIDTH: 900 MM

WEIGHT: 36 KG

 MODULAR FLOATS roto-tech

STERN FLOAT Ø 900

TOTAL DISPOSALITY: 640 KG

USABLE BUOYMENT: 320 KG*

HEIGHT: 752MM

LENGTH: 1775 MM

WIDTH: 730 MM

WEIGHT: 37 KG

 MODULAR FLOATS roto-tech

MIDDLE FLOAT Ø 900

​TOTAL DISPOSALITY: 900 KG

USABLE BUOYMENT: 450 KG*

HEIGHT: 852MM

LENGTH: 1500MM

WIDTH: 900 MM

WEIGHT: 41 KG

 MODULAR FLOATS roto tech

MIDDLE FLOAT W/ BOX Ø 900

FLAP SECURED WITH A GASKET, CLOSED WITH FOUR Ø8 SCREWS

TOTAL DISPOSALITY: 900 KG

USABLE BUOYMENT: 450 KG*

HEIGHT: 852MM

LENGTH: 1500MM

WIDTH: 900 MM

WEIGHT: 56 KG

BOX CAPACITY: 200L

 MODULAR FLOATS roto tech

* FLOAT SUBMERGED APPROX. 400MM

TRAMS

WHAT YOU CAN USE OUR FLOATS FOR?

water platform
houseboat

WORKING PLATFORMS

HOUSEBOATS

water platform
